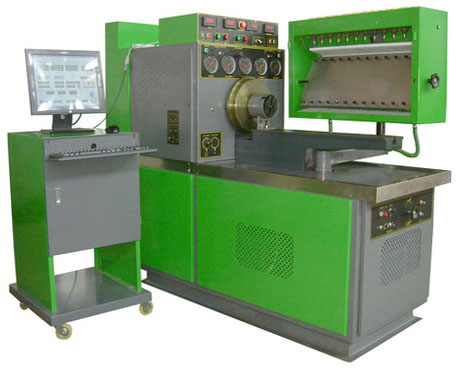

• TST-C
TST-C

1. Motor power:.5.5,7.5,11,15,18.5,22kw 2. Power supply voltage:415,380,220v 3. Power supply frequency:50/60 HZ 4. Protection level:IP54 5. Speed range:0-4000 rpm 6. Counter setting range:0-9999

Product Details

Delta PLC(Programmable logic Controller)

Technical specification :

1.  Motor power:.5.5,7.5,11,15,18.5,22kw

2.  Power supply voltage:415,380,220v

3.  Power supply frequency:50/60 HZ

4.  Protection level:IP54

5.  Speed range:0-4000 rpm

6.  Counter setting range:0-9999

7.  Temperature setting range:0-80

8.  Center height of driving shaft:125mm

9.  DC power:12/24V

10. Measuring tube:45ml,150ml,260ml(optional)

11. Number of Measuring cylinder:6,8,12

12. Oil Supply pump:10L/min

13. Fuel supply pressure: High pressure:0-40bar;low perssure:0-4bar

14. Fuel tank cubage:60L

15. Pressure meter: Low pressure:0-6bar;high pressure:0-60bar;inner pressure:0-16bar;Vacuum pressre:-1-2.5bar;Oil        meter:0-10bar

16. Heat Power: 2kw

17. Temperature controlled range:30-65

18. Size:2000*1060*1800mm

19. Weight:950kg

Function

1.   Fuel delivered of each cylinder on any speed can be tested

2.   Speed, temperature, counter, pressure, Rack meter can be displayed on the computer of test bench.

3.   Rack traveling curve can be displayed(on request)

4.   LCD monitor

5.   Directly driven by motor, variable frequency stepless speed regulation.

6.   Static inspection on the delivery time of each cylinder

7.   Inspection on Performance of the mechanical governor

8.   Inspection on performance of the solenoid valve of VE pump

9.   Inspection on performance of the pneumatic governor

10. Inspection on the performance of the Pressure Compensator

11. Oil returned volume of distribute pump

12. Inspection on the Inner pressure of the VE pump

13. Inspection on the performance of the minus pressure of pneumatic governor

14. Inspection on Pump body sealing performance
15. Oil lubricate(on request)
16. Cast iron base(on request)
17. Foced cooller(on request)
