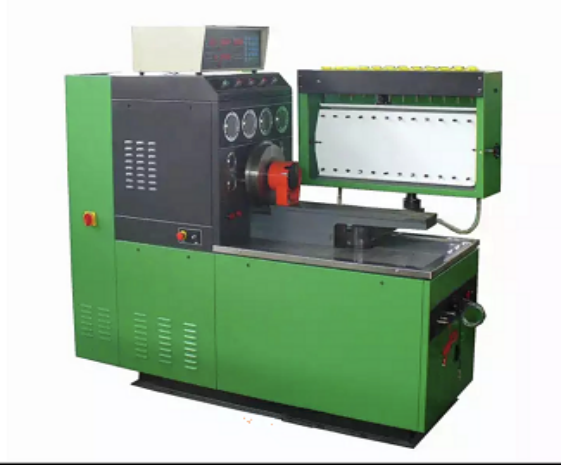

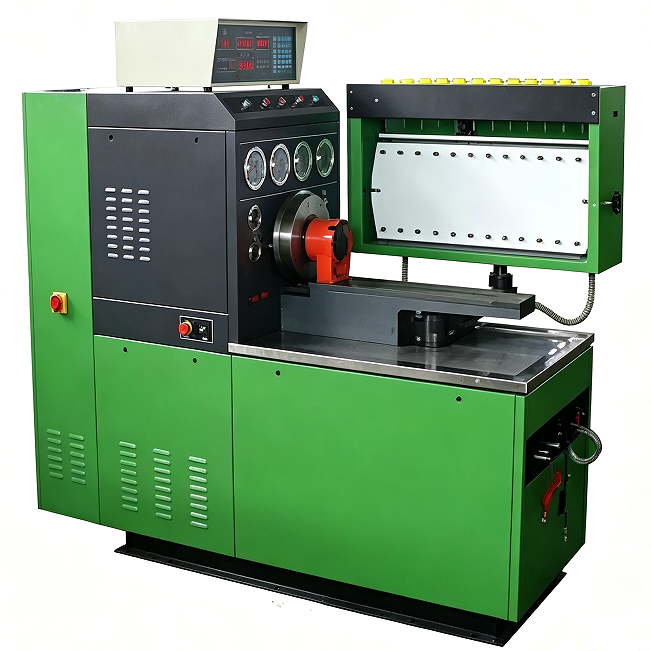

12PSD-JX Diesel pump test bench

Main function:

1.  Measurement of each cylinder delivery at any speed.

2. Test point and interval angle of oil supply of injection pump.

3. Checking and adjust the mechanical governor.

4. Checking and adjusting the distributor pump.

5. Experiment and adjusting of behavior of supercharging and compensatory device.

6. Measurement of oil return of distributing pump

7. Testing of the electromagnetic valve of distributor pump.(12V/24V)

8. Measurement of the internal pressure of distributor pump.

9. Checking of the advance angle of advance device.

10. Checking the sealing of injection pump body

Characteristics:

1. Changing frequency changing rotational speed

2. Low fall of rotational speed and high output torque

3. High measurement precision;

4. The functions of over voltage, overload and short circuit protection;

5. Ten classes Rotation speeds presetting;

6. Constant temperature controlled;

7. Ultra low noise;

8. Operating position: arbitrary side of the two work sides of the test stand;

9. Rotation speed, count, temperature, air pressure digital display.

10. Built-in air resource

Diesel Pump & Injector

Calibration and Analysis Test Bench

Application :  Diesel Pumps and Injectors Tester.

Brand Name: Neutral / OEM / Original

Place of Origin:  Shandong China

Size:  (L*W*H)120*85*141CM

Wooden packing size : (L*W*H)210*113*170CM

Net Weight: 700kg

Warranty:   1 year

Payment Methods:  T/T , Western Union, Paypal

Quality:  High Quality

Packaging Details: Neutral Package / Original Package

Stock:  In Stock

MOQ:  1 Piece

Deliver time :  Within 20 Days after payment

Shipping Way : DHL FedEX UPS TNT EMS ARAMEX ,By Air ,by Sea

Material:  High-speed steel
