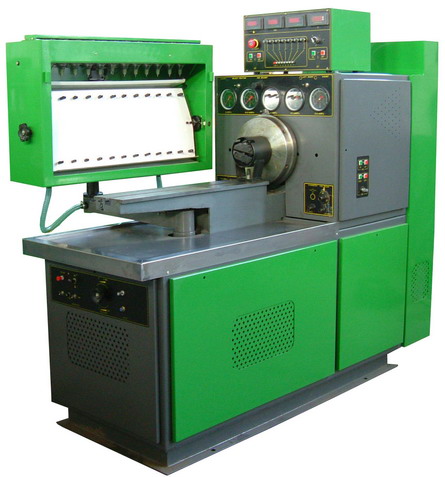

• TST-B
TST-B

1. Motor power:.5.5,7.5,11,15,18.5,22kw 2. Power supply voltage:415,380,220v 3. Power supply frequency:50/60 HZ 4. Protection level:IP54 5. Speed range:0-4000 rpm

Product Details

Technical specification :

1.   Motor power:.5.5,7.5,11,15,18.5,22kw

2.   Power supply voltage:415,380,220v

3.   Power supply frequency:50/60 HZ

4.   Protection level:IP54

5.   Speed range:0-4000 rpm

6.   Counter setting range:0-9999

7.   Temperature setting range:0-80

8.   Center height of driving shaft:125mm

9.   DC power:12/24V

10. Diameter of the Driving connector:120mm

11. Measuring tube:45ml,150ml,260ml(optional)

12. Number of Measuring cylinder:4,6,8,12

13. Oil Supply pump:10L/min

14. Fuel supply pressure: High pressure:0-40bar;low perssure:0-4bar

15. Fuel tank cubage:60L

16. Pressure meter: Low pressure:0-6bar;high pressure:0-60bar;inner pressure:0-16bar;Vacuum pressre:-1-2.5bar;Oil meter:0-10bar

17. Heat Power:2kw

18. Temperature controlled range:30-65

19. Size:2000*1060*1800mm

20. Weight:950kg

Function

1.  Fuel delivered from each cylinder on any speed can be tested.

2.  Fuel delivered partition angle can be tested

3.  Performance of the mechanical and pneumatic Governor can be tested

4.  Performance of the solenoid valve can be tested

5.  Oil returned volume of the VE pump can be tested

6.   Inner pressure of the VE pump can be tested

7.   Performance of the minus pressure of pneumatic governor

8.   Pump body sealing performance
9.   oil lubricate(on request)
10. Cast iron base(on request)
11. Foced cooller(on request)
